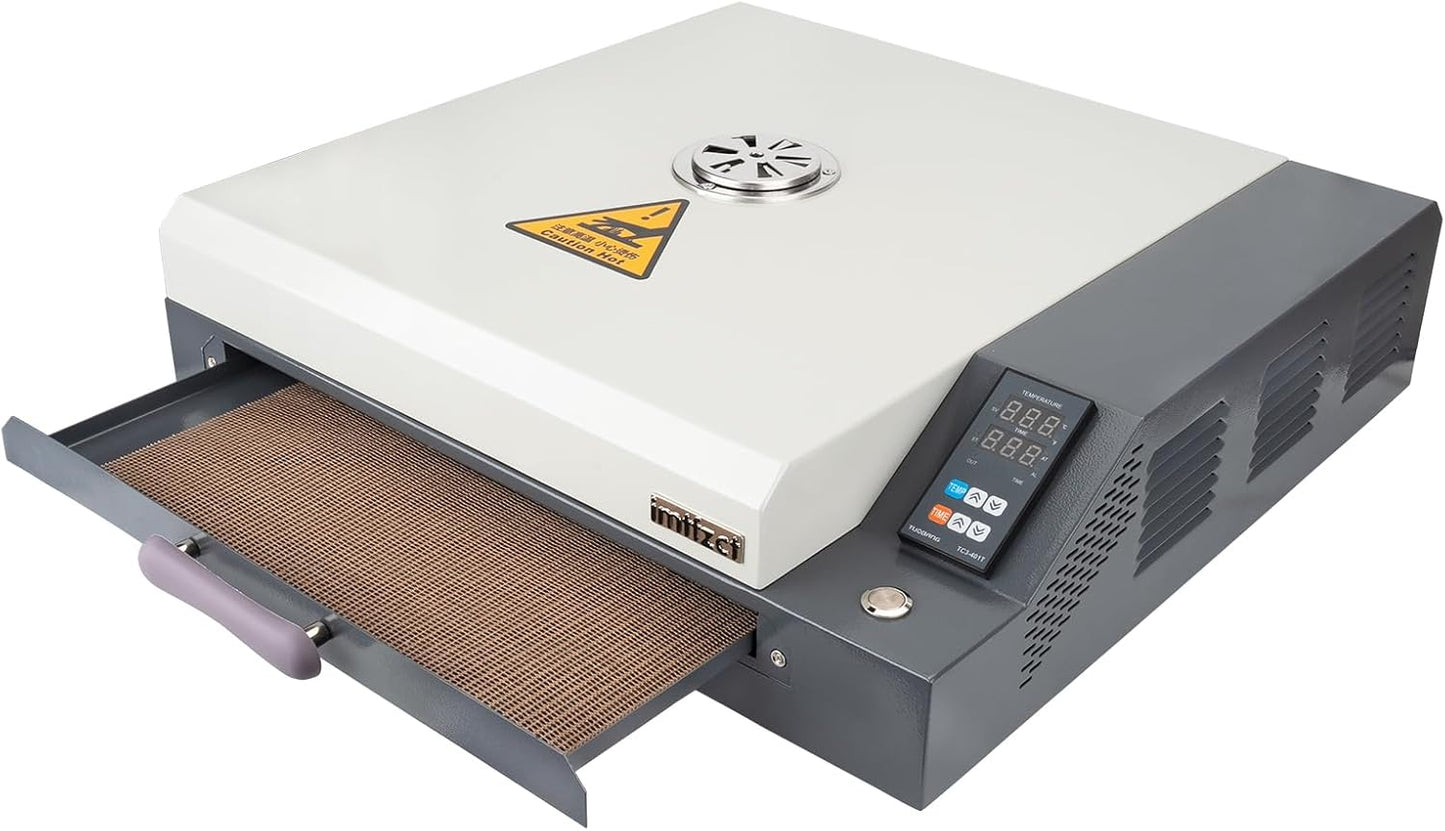

A3 A4 DTF Curing Oven with Temperature Control

Specifications:

Cures film up to A3/11.7in x 16.5in(297mm x 420mm)(drawer model)

Curing temperature up to 155°C (311°F)

Digital timer control of TPU powder curing

An Alarm sounds when curing is completed

Power supply:110V,1280W

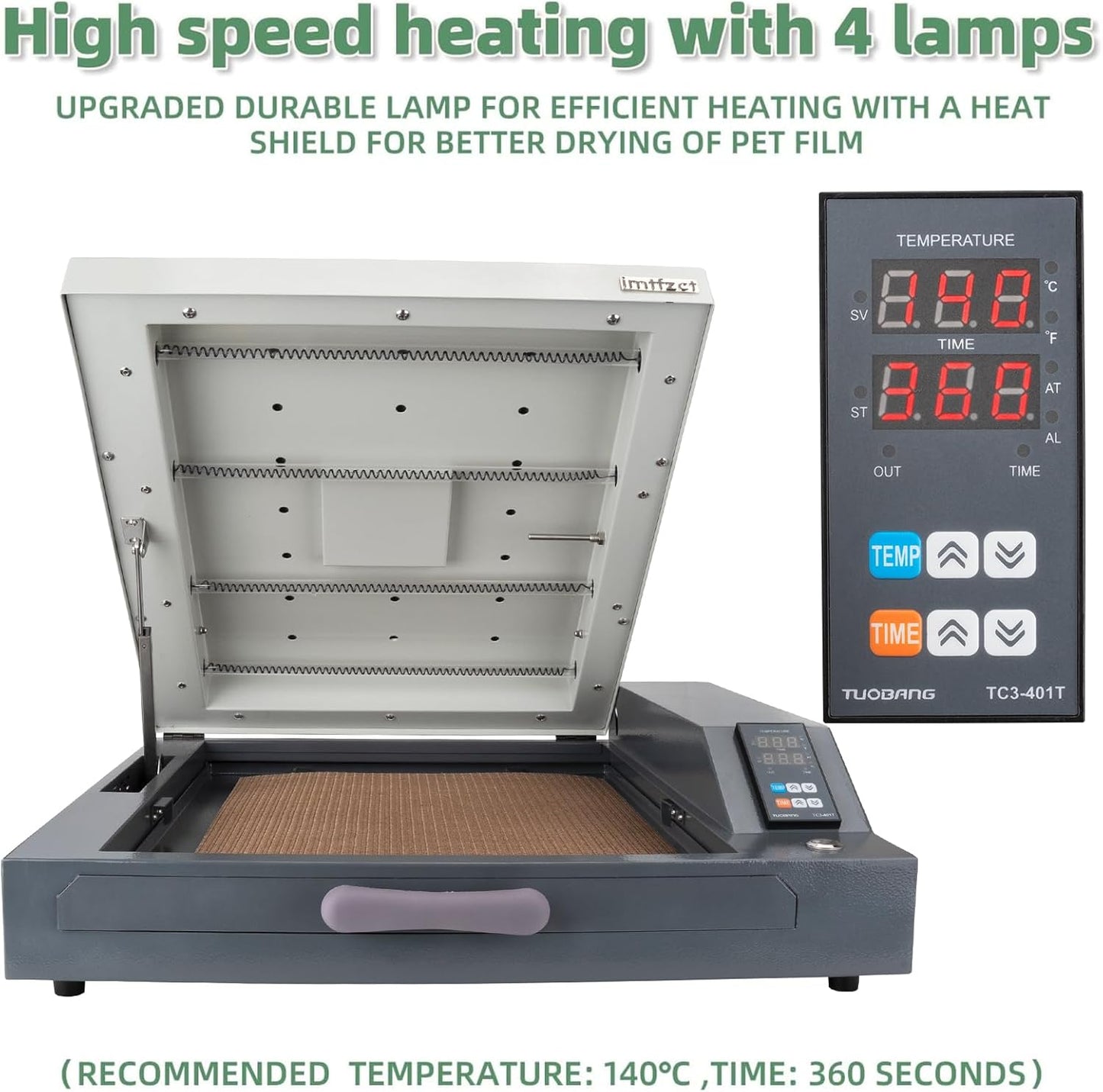

Lamps number: 4pcs

The maximum baking area available: 14.6in*18.9in(37cm*48cm)

Recommended temperature and time：140℃，360S

（Adjustable temperature range：145-155℃ Adjustable time range：380-450s）

Dimension: 19.7in x 19.5in x 5.12in (500mm x 495mm x 130mm)

Net weight:23.4lbs(10.6kg)

Packing Size:22.4in x 22in x 9.1in(570mm x 560mm x 230mm)

Gross Weight: 33lbs(15kg)

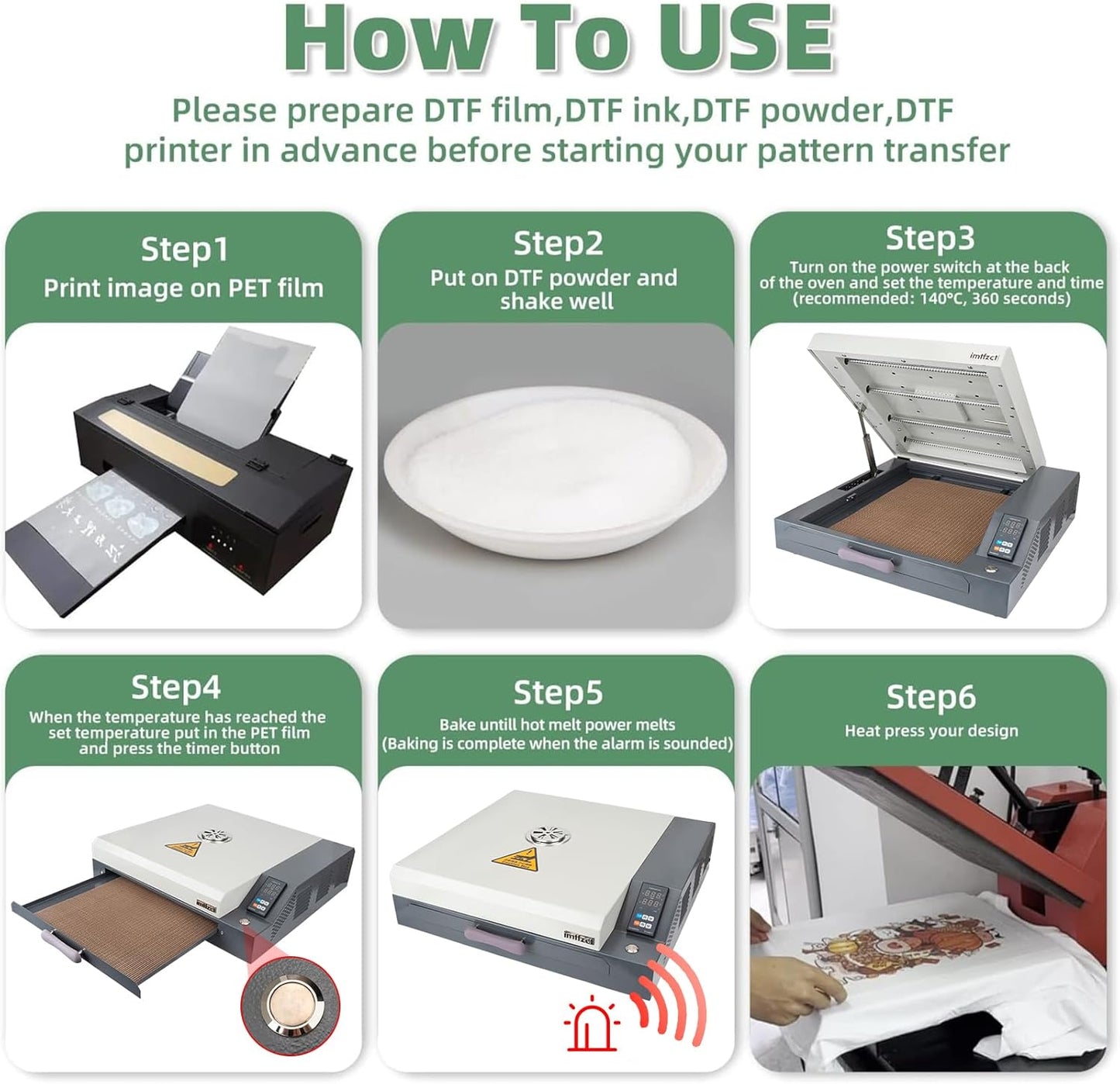

How To USE

Please prepare DTF film,DTF ink,DTF powder,DTF printer in advance before starting your pattern transfer

Step1:Print image on PET film

Step2:Put on DTF powder and shake well

Step3:Turn on the power switch at the back of the oven and set the temperature and time

(recommended: 140°C, 360 seconds)

Step4: When the temperature has reached the set temperature put in the PET film

and press the timer button

Step5:Bake untill hot melt power melts

(Baking is complete when the alarm is sounded)

Step6:Heat press your design
