100W(100,000mW) CLASS 4 JPT M7 MOPA Fiber Laser Marking Machine Fiber Laser Engraver Laser Marker 300×300mm with 80mm Rotary Axis and Heightened 800mm Tower Lightburn Compatible

• Laser Class 4, 100,000mW Output Power; FDA Accession Number: 2421061-000
• Laser Power: 100W+Marking Area(Lens): 300*300mm+Engraving Depth:≤2mm+80mm Rotary Axis+800mm Taller Tower EZCAD2(Compatible with Lightburn)
• Laser Source: JPT MOPA M7; Repetition Rate Frequency: 1-4000kHZ; Pulse Duration: 2-500ns; Max. Pulse Energy: 1.5mJ.
• Application Advantage: Metal surface processing, peeling coating; Aluminum black marking; Semi-conductor&electronics industry applications; Large area engraving; Excellent marking effect on plastic or other sensitive material; Black and color marking on stainless steel.
• High-Rate of Electrical-Optical Conversion: up to 70%; Imported laser scanning system makes the marking speed up to 7m/s. Re-position precision is 0.002mm

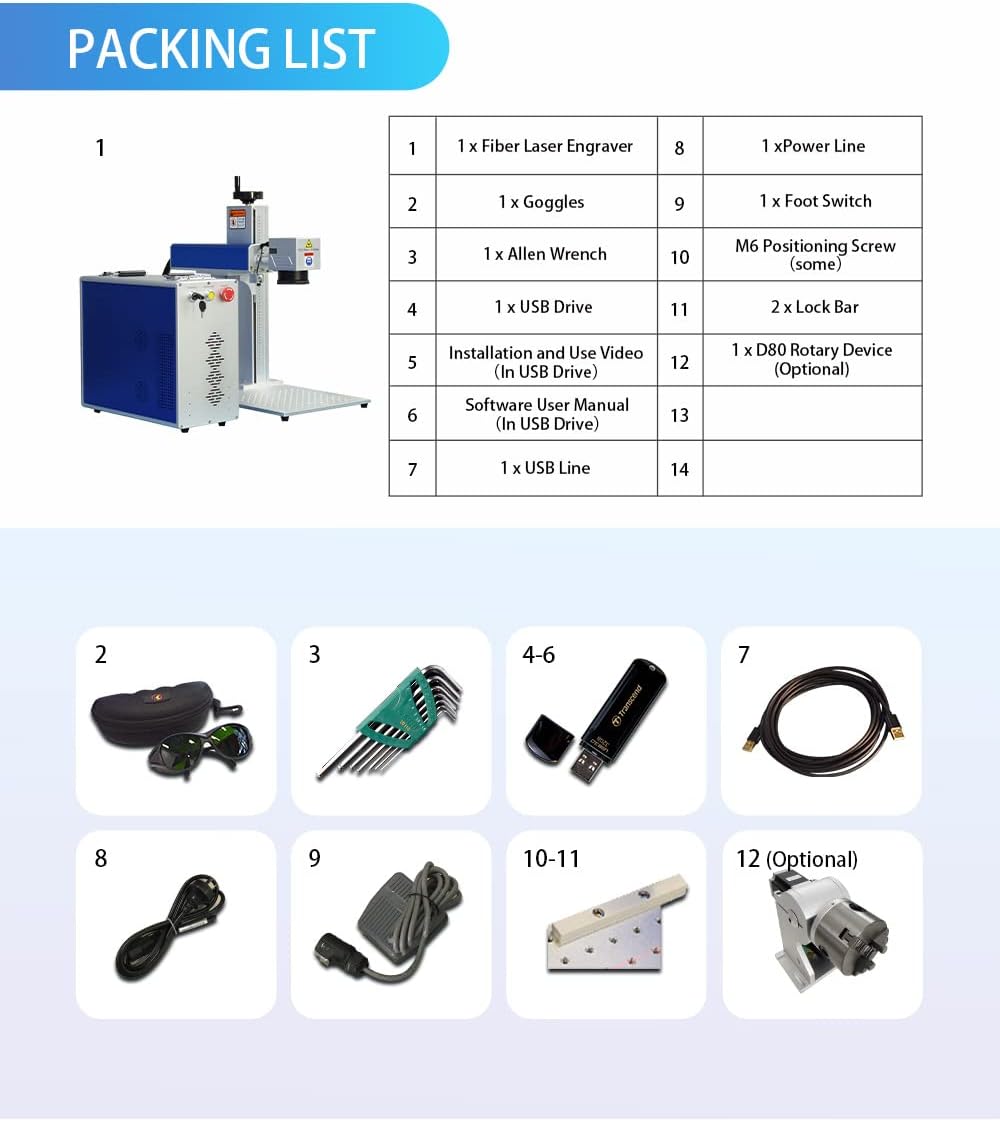

Packaging Details:

100W JPT MOPA M7 Laser Engraver+300*300mm Lens+80mm Rotary Axis+800mm Taller Tower

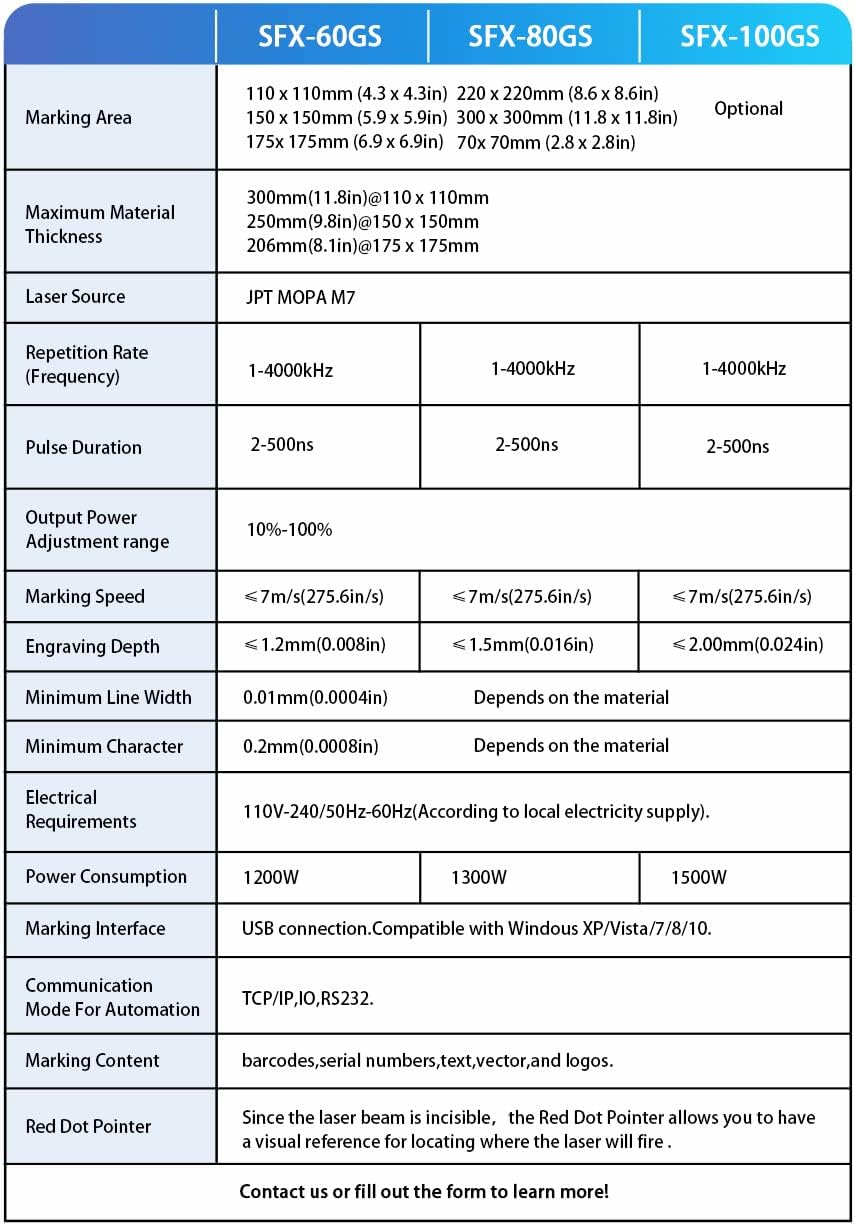

Technical Parameters:

• Laser Power: 100W
• Marking Area: 300*300mm

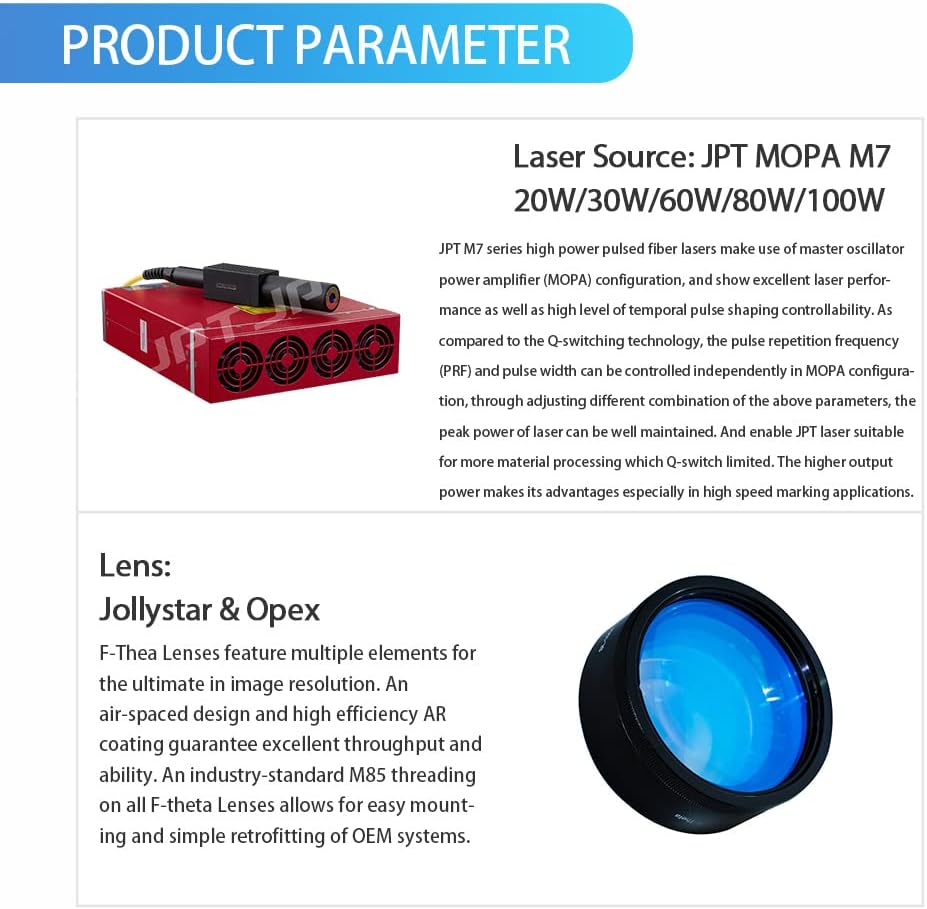

• Laster Source: JPT MOPA M7
• Repetition Rate Frequency : 1-4000kHZ@JPT
• Pulse Duration: 2-500ns
• Output power adjustment range 10%-100%
• Marking Speed: 7m/s
• Engraving Depth:≤2.0mm
• Min. Line Width: ≤0.01mm（Depends on the material)
• Min. Character: 0.2mm（Depends on the material)
• Input Voltage: 110V-240V/50-60Hz
• Complete Power Consumption: 1500W
• Communication Mode for Automation TCP/IP, IO,RS232

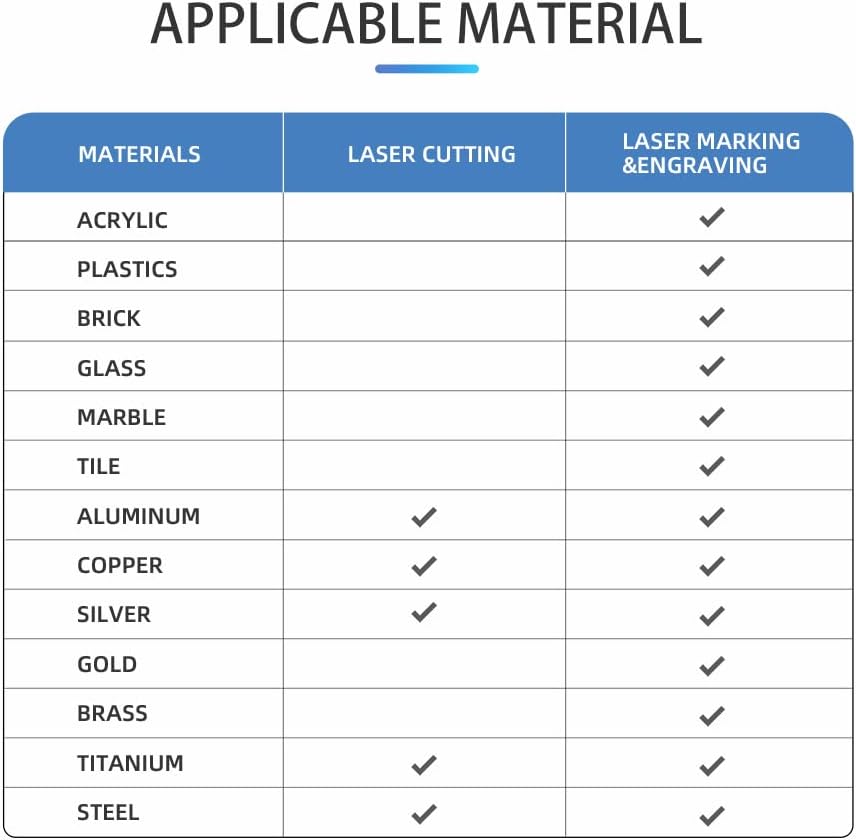

Application Advantages:

• Metal surface processing, peeling coating;
• Aluminum black marking;
• Semi-conductor&electronics industry applications;
• Large area engraving;
• Excellent marking effect on plastic or other sensitive material;
• Black marking and color marking on stainless steel.
